quad bikes


110cc Quad Bike

The new and improved 110cc A.T.V features a range of attractive qualities from its durable 4 stroke air cooled engine to the raptor styled body work.  This is possibly the best mid sized quad on the market today. The 3 forward and one reverse gear make this quad very easy to ride from the novice quad rider to the professional quad bike rider.  Its top speed of 45mph makes it very quick on any field or track.

If it's excitement you are looking for then look no further than the Necht 110cc.

One of the new features added to the 100cc has been the independent front suspension and the single rear suspension housed on a full rear swinging arm.  These added features make any terrain thrown at the quad seem like he school playground


110cc Quad Details
Model: DR110
Delivery: Self Build
Engine: 110cc
Colour: Red/Blue/Black
Gears: 4
Our Price:
£745.00
(Including VAT)

Delivery
UK Mainland £50.00 each, Collection FREE. Other locations price on request

PRODUCT OPTIONS

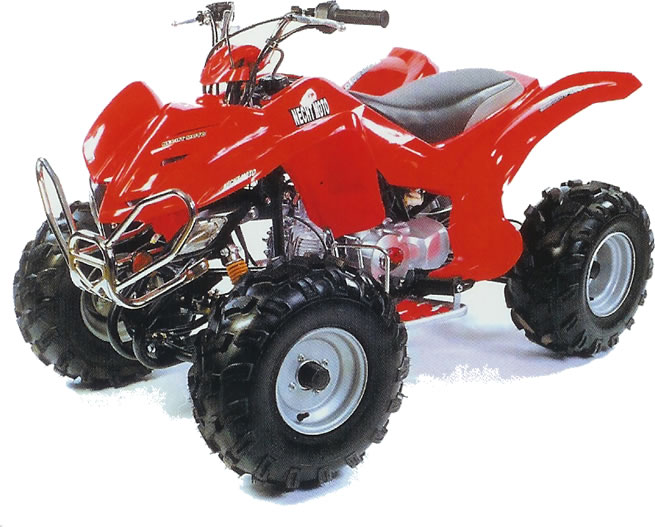

Red £745.00

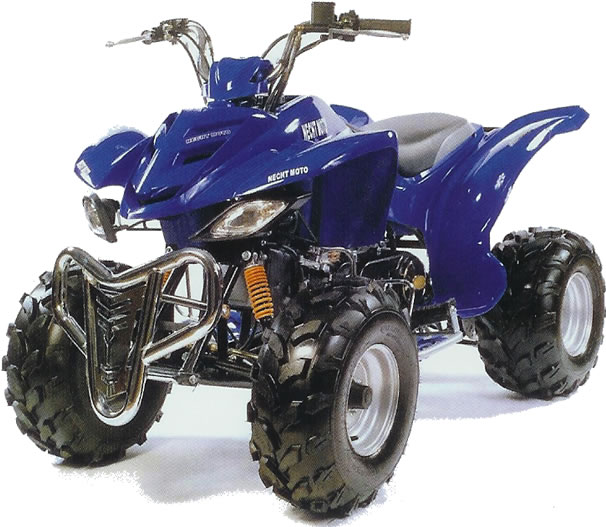

Blue £745.00

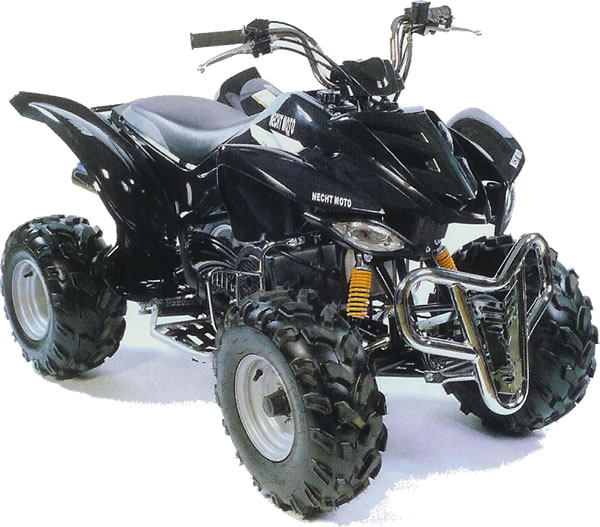

Black £745.00
View Large



110cc Quad Technical Info
Engine Type 4-Strokes, Air Cooled,4 Speed Semi-Automatic (3 forward 1 Reverse
Cylinder Arrangement Single Cylinder
Transmission System Shaft Drive
Bore x Stroke (mm) 50x53.5
Piston Displacement (cc) 145
Compression Ratio 9.1.1
Maximum Power (kw/r/min) 5.2/8000/8500
Maximum Torque (N.m./rpm) 6.2 Nm/5500/6000
Starter System Electric
Lubrication Auto
Transmission 4 Speed Semi-Automatic
Overall LxWxH (in) 61x36x36
Wheel Base (in) 40
Seat Hight (in) 29
Min. Turning Radius (mm) 2800
Ground Clearance (in) 4

Rider Capacity 1 Person
Dry Weight (lb) 256
Brake (Front/Rear) Drum/Drum
Tyre, Front 19x7-8
Tyre, Rear 18x9.5-8
Ignition Type C.D.I
Fuel Tank Capacity (L) 7.8
Engine Oil Capacity (L) 0.9
Gear Oil Capacity (L) 0.15
Front Suspension Independent,Telescopic Arm
Rear Suspension Swing Arm
Parking Brake Mechanical Lock
Max. Load Capacity (lb) 210
Max. Speed (mi/hr) 40
Battery 12V-9A
PACKING SIZE (in) 57x33x26/G.W. 350LB
